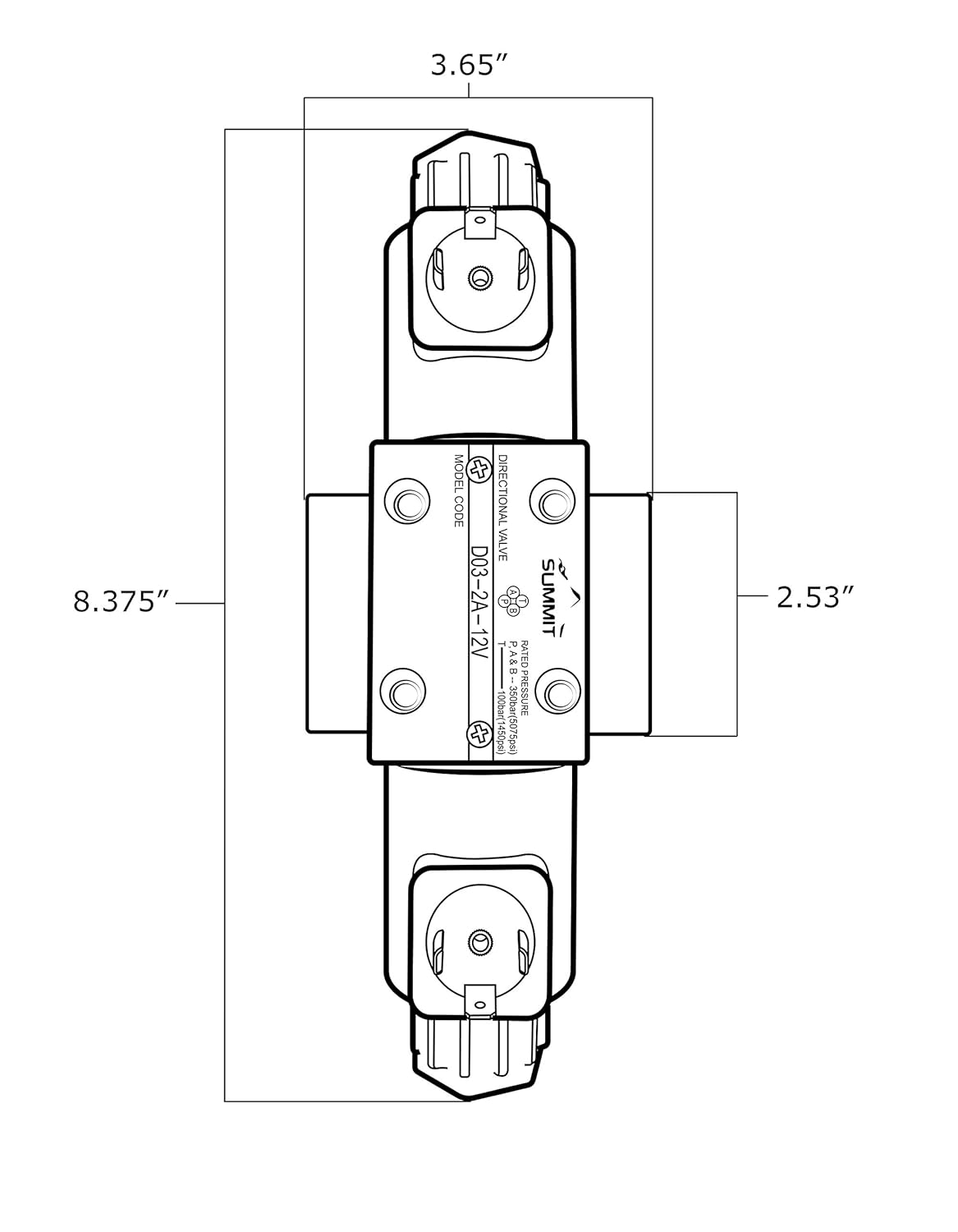

Electric Hydraulic Double Acting Directional Control Valve, 1 Spool, 25 GPM (D Spool, Motor Control, 12 Volt)

Electric Hydraulic Double Acting Directional Control Valve, 1 Spool, 25 GPMThis double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic motor. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control D Spool (Motor Control)All spools are double acting with spring return to neutral position, D spool is designed for non-load holding applications such as motors and horizontal cylindersA and B ports are open to Tank in neutral positionIntended for Closed Center SystemsValve Body Features: Solid aluminum housing designed for rugged useMax Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSIFlow Rating: 25 GPMAluminum Body3000 PSI Rated#12 SAE (1 1⁄16 – 12 ORB) female thread Work Ports#12 SAE (1 1⁄16 – 12 ORB) female thread Inlet (Pressure) Port#16 SAE (1 5/16 -12 ORB) female thread Outlet (Tank) PortSolenoid Specifications:Nominal Voltage Tolerance +/- 10%Power Rating: 37 WattsAmps: 3.08100% Duty Cycle12 Volt

• D Spool (Motor Control), 12 Volt
• Flow Rating: 25 GPM
• This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic motor. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control
• All spools are double acting with spring return to neutral position, D spool is designed for non-load holding applications such as motors and horizontal cylinders, A and B ports are open to Tank in neutral position
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI
